MagicDraw UML Community Edition 14.0

5.0 out of 5 stars

(September 20, 2007)

Mac, Unix, Windows (All) / Freeware / 2,023 downloads

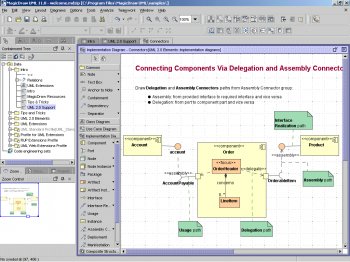

MagicDraw is a visual UML modeling and CASE tool with teamwork support. Designed for Business Analysts, Software Analysts, Programmers, QA Engineers, and Documentation Writers, this dynamic and versatile development tool facilitates analysis and design of Object Oriented (OO) systems and databases. It provides the industry's best code-engineering mechanism, as well as database schema modeling, DDL generation and reverse engineering facilities.

  • Publisher

    No Magic, Inc.

  • Homepage

    MagicDraw UML

  • Uninstaller

    Yes

  • Latest Changes

    - Added code engineering support for Microsoft Managed C++ (Visual Studio 2003) and C++/CLI (Visual Studio 2005)

    - Configured the amount of error messages shown during reverse engineering (You can also set the reverse to stop for the certain errors in the reverse process)

    - Improved #include statement generation for the STL template

    - Improved Namespace look up

    - Users can now specify between class and namespace during the reverse process for unknown symbols

    - New Report Engine speeds up performance and improves usability

  • Other Versions

    MagicDraw UML Personal Edition

    MagicDraw UML Standard, Professional & Enterprise Edition
