DipTrace Free 2.1

4.3 (6 votes)

(February 10, 2010)

Windows 2000/2003/9x/XP / Freeware / 965 downloads

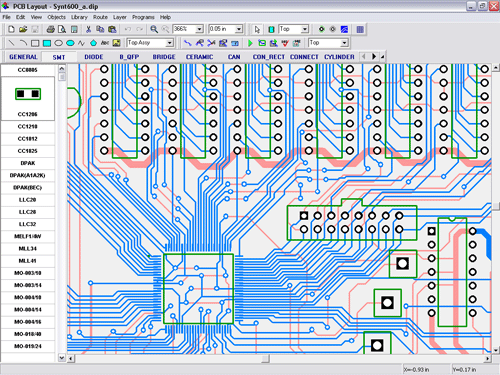

DipTrace is an advanced PCB design software application that comes with a PCB Layout module, a powerful auto-router, schematic capture and component/pattern editors to design your own component libraries. Besides being very simple to learn, which is quite an accomplishment for an engineering software application, the software has a very intuitive user interface and many innovative features.
